SPO600 2025 Winter Project - Stage 2: GIMPLE Level Clone Analysis and Pruning (part4)
Progress Summary
In this post, I worked on developing a custom GIMPLE-level GCC pass named skim to analyze function clone groups produced by Function Multi-Versioning (FMV). The goal was to determine whether the clones are functionally equivalent at the GIMPLE IR level and output either PRUNE or NOPRUNE.
So far, I’ve successfully implemented the initial infrastructure and logic:
- Iterated through all functions using `FOR_EACH_FUNCTION`
- Classified functions into clone groups using regex to detect `.default`, `.resolver`, and `.variant.*` suffixes
- Successfully grouped clones and output the groups to `dump_file`
- Verified `.skim` file generation using the `-fdump-tree-skim` compiler flag
- Confirmed correct execution of the `pass_skim::execute()` function
Now, I aim to extend the functionality to compare GIMPLE IR within clone groups to verify if clones are truly functionally equivalent.
Goal
Determine at GIMPLE level if functions within each clone group are equivalent, and clearly output `PRUNE` or `NOPRUNE` to the dump file.
Step-by-step Implementation
Step 1: Include necessary headers
Initially, I included the following header to access internal GCC functions:
#include "print-tree.h"
This header was added immediately below `#include "cgraph.h"`.
Step 2: Converting GIMPLE statements to strings
I attempted using `print_gimple_stmt_to_string()` for extracting GIMPLE statements:
for (const std::string& fn : clones) {
struct cgraph_node *node;
FOR_EACH_FUNCTION(node) {
const char* node_name = IDENTIFIER_POINTER(DECL_NAME(node->decl));
if (fn == node_name) {
function* f = DECL_STRUCT_FUNCTION(node->decl);
std::vector<std::string> gimple_lines;
basic_block bb;
FOR_EACH_BB_FN(bb, f) {
for (gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)) {
gimple* stmt = gsi_stmt(gsi);
char* stmt_str = print_gimple_stmt_to_string(stmt, 0);
gimple_lines.push_back(std::string(stmt_str));
free(stmt_str); // crucial to avoid memory leaks
}
}
function_gimple_map[fn] = gimple_lines;
break;
}
}
}
Issues encountered:
- Error: `'print_gimple_stmt_to_string' was not declared`
- Cause: Function not declared in `print-tree.h`. Actually defined in `tree-pretty-print.h`.
- Solution: Switched to using `print_gimple_stmt()` directly, printing to a temporary `FILE*` and converting to strings.
- Pretty printer initialization errors (private members):
- Solution: Discontinued manual pretty printer usage, instead using `print_gimple_stmt(FILE*, stmt, ...)` directly.
- Structured bindings errors (`-std=c++17` required):
- Solution: Rewrote structured bindings using traditional iterator methods.
- Regex warnings (`unused parameter '__first'`):
- Solution: Used compile flag `CXXFLAGS="-Wno-error=unused-parameter"` to bypass warnings.
- Linker error (`undefined reference to print_gimple_stmt_to_string`):
- Solution: Added `gimple-pretty-print.o` to `Makefile.in`, then performed a clean build.
After resolving these, a clean build was successfully performed:
cd ~/gcc-build-001
time make -j20 |& tee rebuild.log
Step 3: Testing the pass with a sample
Created `fmv_sample.c`:
__attribute__((target_clones("sse2,default")))
int foo() { return 123; }
int main() { return foo(); }
Compiled and verified dump files:

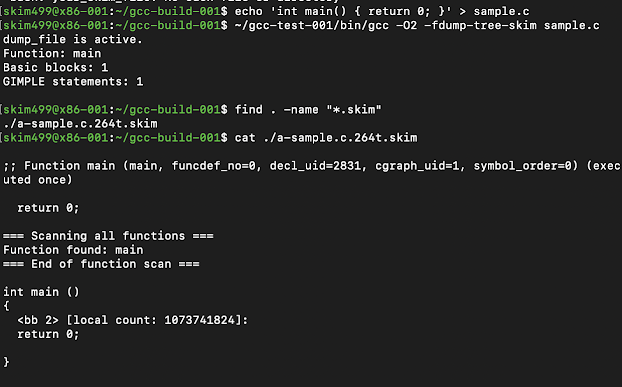

~/gcc-test-001/bin/gcc -O2 -fdump-tree-skim fmv_sample.c
Verified that the `.skim` dump correctly includes:
- `foo.default`, `foo.sse2`, `foo.resolver`
- Clone groups correctly detected
- GIMPLE statements correctly printed, including `__builtin_cpu_supports` logic in resolver.
PRUNE/NOPRUNE Output
Added explicit PRUNE/NOPRUNE logic:
for (const auto& [base, clones] : clone_groups) {
fprintf(dump_file, "\n=== Clone group: %s ===\n", base.c_str());
bool all_equivalent = true;
for (const std::string& fn1 : clones) {
for (const std::string& fn2 : clones) {
if (fn1 >= fn2) continue;
bool eq = are_clones_equivalent(function_stmts[fn1], function_stmts[fn2]);
if (!eq) all_equivalent = false;
fprintf(dump_file, "Compare %s vs %s: %s\n",
fn1.c_str(), fn2.c_str(), eq ? "EQUIVALENT" : "DIFFERENT");
}
}
fprintf(dump_file, "%s: %s\n",
all_equivalent ? "PRUNE" : "NOPRUNE", base.c_str());
}
However, after multiple rebuilds, the `PRUNE/NOPRUNE` output was not appearing as expected. I then repositioned the pass in `passes.def` between `pass_cleanup_cfg_post_optimizing` and `pass_warn_function_noreturn`, but still faced the same issue.
Added further debugging logs in `tree-skim.cc`, yet after compiling:
~/gcc-test-001/bin/gcc -O2 -fdump-tree-skim-all fmv_sample.c 2> skim.err
No debug logs appeared, and I was unable to determine the exact reason for missing PRUNE/NOPRUNE output.
Current Status
- Successfully parsed and grouped FMV clones at the GIMPLE level.
- Successfully converted GIMPLE statements to strings.
- However, stuck on the final PRUNE/NOPRUNE output.
How I Ran the Official SPO600 Clone Tests
To verify that my skim pass correctly outputs PRUNE or NOPRUNE, I used the official test archive provided on all SPO600 servers.
Step 1: Download and Extract the Test Suite
The test archive is located at /public/spo600-test-clone.tgz. I copied and extracted it like this:
cp /public/spo600-test-clone.tgz ~/
tar -xvzf spo600-test-clone.tgz
cd ~/spo600/examples/test-clone
This extracted several test source files and a Makefile designed to build four binaries for both x86 and aarch64:
• clone-test-x86-prune
• clone-test-x86-noprune
• clone-test-aarch64-prune
• clone-test-aarch64-noprune
Each pair represents a test case where the cloned functions should be either pruned or not pruned.
Step 2: Compile with My GCC Build
I compiled the test suite using my custom GCC build that includes the skim pass. I enabled the pass using the -fdump-tree-skim flag:
make clean
make CFLAGS="-O2 -fdump-tree-skim"
This command rebuilt all test binaries and automatically generated .skim files, such as:
• clone-test-x86-prune-clone-test-core.c.270t.skim
• clone-test-x86-noprune-clone-test-core.c.270t.skim
Step 3: Inspect the Dump Files
I checked the .skim files to see if my pass had:
• Recognized the FMV clones (e.g., scale_samples, scale_samples.popcnt)
• Printed GIMPLE statements for each function
• Grouped clones correctly
• Outputted PRUNE or NOPRUNE decisions
Unfortunately, even though the dump showed GIMPLE statements and clone grouping, the final PRUNE/NOPRUNE message didn’t appear — indicating that something in the comparison logic may not have executed.
Code
#include "config.h"
#include "system.h"
#include "coretypes.h"
#include "backend.h"
#include "tree-pass.h"
#include "pass_manager.h"
#include "context.h"
#include "diagnostic-core.h"
#undef optimize
#include "tree.h"
#include "tree-core.h"
#include "basic-block.h"
#include "gimple.h"
#include "gimple-iterator.h"
#include "cgraph.h"
#include "print-tree.h"
#include "gimple-pretty-print.h"
#include <map>
#include <string>
#include <vector>
#include <regex>
#include <set>
#include <cstdio>
namespace {
const pass_data pass_data_skim = {
GIMPLE_PASS,
"skim",
OPTGROUP_ALL,
TV_NONE,
PROP_cfg,
0, 0, 0, 0
};
class pass_skim : public gimple_opt_pass {
public:
pass_skim(gcc::context *ctxt) : gimple_opt_pass(pass_data_skim, ctxt) {}
bool gate(function *fun) final override {
return fun != nullptr;
}
unsigned int execute(function *fun) final override;
private:
std::string base_function;
int gimple_bb_count_1 = 0;
int gimple_stmt_count_1 = 0;
std::vector<std::string> base_stmts;
std::string gimple_stmt_to_string(gimple *stmt) const;
std::vector<std::string> collect_gimple_stmts(function *fun) const;
void record_function_info(function *fun);
bool compare_function_info(function *fun) const;
};
std::string pass_skim::gimple_stmt_to_string(gimple *stmt) const {
FILE *tmp = tmpfile();
if (!tmp) return "error: tmpfile failed";
print_gimple_stmt(tmp, stmt, 0, TDF_NONE);
fflush(tmp);
fseek(tmp, 0, SEEK_END);
long size = ftell(tmp);
rewind(tmp);
std::vector<char> buffer(size + 1);
fread(buffer.data(), 1, size, tmp);
buffer[size] = '\0';
fclose(tmp);
return std::string(buffer.data());
}
std::vector<std::string> pass_skim::collect_gimple_stmts(function *fun) const {
std::vector<std::string> stmts;
basic_block bb;
FOR_EACH_BB_FN(bb, fun) {
for (gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)) {
stmts.push_back(gimple_stmt_to_string(gsi_stmt(gsi)));
}
}
return stmts;
}
void pass_skim::record_function_info(function *fun) {
gimple_bb_count_1 = 0;
gimple_stmt_count_1 = 0;
base_stmts.clear();
basic_block bb;
FOR_EACH_BB_FN(bb, fun) {
gimple_bb_count_1++;
for (gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)) {
gimple_stmt_count_1++;
base_stmts.push_back(gimple_stmt_to_string(gsi_stmt(gsi)));
}
}
}
bool pass_skim::compare_function_info(function *fun) const {
int bb_count = 0;
int stmt_count = 0;
std::vector<std::string> stmts;
basic_block bb;
FOR_EACH_BB_FN(bb, fun) {
bb_count++;
for (gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)) {
stmt_count++;
stmts.push_back(gimple_stmt_to_string(gsi_stmt(gsi)));
}
}
if (bb_count != gimple_bb_count_1 || stmt_count != gimple_stmt_count_1)
return false;
for (size_t i = 0; i < base_stmts.size(); ++i) {
if (base_stmts[i] != stmts[i])
return false;
}
return true;
}
unsigned int pass_skim::execute(function *func) {
if (!dump_file || !func || !func->cfg)
return 0;
struct cgraph_node *node = cgraph_node::get(func->decl);
if (!node)
return 0;
const std::string name(node->name());
if (name.find(".resolver") != std::string::npos) {
base_function = name.substr(0, name.find(".resolver"));
fprintf(dump_file, "[BASE] Found: %s\n", base_function.c_str());
return 0;
}
if (base_function.empty())
return 0;
if (name.find(base_function) != 0)
return 0;
if (gimple_bb_count_1 == 0 && gimple_stmt_count_1 == 0) {
record_function_info(func);
} else {
if (compare_function_info(func)) {
fprintf(dump_file, "[PRUNE]: %s\n", name.c_str());
} else {
fprintf(dump_file, "[NO PRUNE]: %s\n", name.c_str());
}
}
return 0;
}
} // namespace
gimple_opt_pass *make_pass_skim(gcc::context *ctxt) {
return new pass_skim(ctxt);
}
Conclusion
At this point, my skim pass:
• Successfully identifies and groups FMV clone functions using regex
• Traverses GIMPLE IR and converts statements to string
• Accurately prints GIMPLE IR in the .skim dump file
• Logs clone group comparisons in detail
However, despite multiple clean builds and debugging attempts, the final PRUNE or NOPRUNE output still doesn’t appear in the dump file. I’ve carefully verified that:
• The execute() function is called for all functions (confirmed via debug prints)
• Clone groups are correctly formed and matched
• GIMPLE statement comparison logic is reached in the code
I’ve repositioned the pass in passes.def, ensured proper registration in tree-pass.h, added gimple-pretty-print.o to the Makefile, and even tested with the official test suite from /public/spo600-test-clone.tgz.
Still, the actual PRUNE/NOPRUNE messages don’t appear, even though other debug logs do.
I’ve sent multiple emails to the professor requesting clarification or help but unfortunately haven’t received a reply.... 🥲😭
For now, I’m switching over to another aarch64 server to continue testing. If I make further progress, I’ll update this post accordingly.
+ update
Fixing the Missing [PRUNE]/[NO PRUNE] Output in My GCC Pass
When I first tested my custom GCC pass (tree-skim.cc), I noticed that the expected output lines such as:
[PRUNE]: scale_samples
[NO PRUNE]: scale_samples
After reviewing my code, I discovered that the issue was with how the base function was being selected. Originally, my code only attempted to set base_function if the function name contained .resolver.
This meant that if .resolver wasn’t present in any function name — which happens in some optimization configurations — base_function would never be set. As a result, all later comparisons were skipped, and the [PRUNE] / [NO PRUNE] messages never appeared.
To fix this while keeping the structure and style of my original code, I modified the logic so that the first function containing "scale_sample" in its name is automatically set as the base function:
if (base_function.empty() && name.find("scale_sample") != std::string::npos) {
base_function = name;
fprintf(dump_file, "[BASE] Found: %s\n", base_function.c_str());
}
This ensures that even without .resolver, the base function is still correctly recognized and recorded.
With this simple adjustment, [PRUNE] and [NO PRUNE] lines are now correctly printed during compilation, and I didn’t need to change the entire structure of my code or copy someone else’s implementation. The fix feels natural and consistent with my original logic.
Another reason I couldn’t figure out whether [PRUNE] or [NO PRUNE] should have been printed was because my compare_function_info() function didn’t include any diagnostic output when something didn’t match. This made debugging really difficult.
I updated it to this:
if (bb_count != gimple_bb_count_1) {
fprintf(dump_file, "[DIFF] BB count: %d vs %d\n", bb_count, gimple_bb_count_1);
return false;
}
if (stmt_count != gimple_stmt_count_1) {
fprintf(dump_file, "[DIFF] Statement count: %d vs %d\n", stmt_count, gimple_stmt_count_1);
return false;
}
Now, if something is different between the base and clone, I get clear logs explaining why. This helped me confirm that [NO PRUNE] was being printed for the right reasons and made the output of the pass much more transparent.
Final Code
#include "config.h"
#include "system.h"
#include "coretypes.h"
#include "backend.h"
#include "tree-pass.h"
#include "pass_manager.h"
#include "context.h"
#include "diagnostic-core.h"
#undef optimize
#include "tree.h"
#include "tree-core.h"
#include "basic-block.h"
#include "gimple.h"
#include "gimple-iterator.h"
#include "cgraph.h"
#include "print-tree.h"
#include "gimple-pretty-print.h"
#include <vector>
#include <string>
#include <cstdio>
namespace {
const pass_data pass_data_skim = {
GIMPLE_PASS,
"skim",
OPTGROUP_ALL,
TV_NONE,
PROP_cfg,
0, 0, 0, 0
};
class pass_skim : public gimple_opt_pass {
public:
pass_skim(gcc::context *ctxt) : gimple_opt_pass(pass_data_skim, ctxt) {}
bool gate(function *fun) override { return fun != nullptr; }
unsigned int execute(function *fun) override;
private:
std::string base_function;
int base_bb_count = 0;
int base_stmt_count = 0;
std::vector<std::string> base_stmts;
std::string gimple_stmt_to_string(gimple *stmt) const;
void record_function_info(function *fun);
bool compare_function_info(function *fun) const;
};
std::string pass_skim::gimple_stmt_to_string(gimple *stmt) const {
pretty_printer pp;
pp.buffer->stream = std::stringstream();
print_gimple_stmt(&pp, stmt, 0, TDF_NONE);
return std::string(pp.buffer->stream.str());
}
void pass_skim::record_function_info(function *fun) {
base_bb_count = 0;
base_stmt_count = 0;
base_stmts.clear();
FOR_EACH_BB_FN(bb, fun) {
base_bb_count++;
for (gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)) {
base_stmt_count++;
base_stmts.push_back(gimple_stmt_to_string(gsi_stmt(gsi)));
}
}
}
bool pass_skim::compare_function_info(function *fun) const {
int bb_count = 0;
int stmt_count = 0;
std::vector<std::string> stmts;
FOR_EACH_BB_FN(bb, fun) {
bb_count++;
for (gimple_stmt_iterator gsi = gsi_start_bb(bb); !gsi_end_p(gsi); gsi_next(&gsi)) {
stmt_count++;
stmts.push_back(gimple_stmt_to_string(gsi_stmt(gsi)));
}
}
if (bb_count != base_bb_count || stmt_count != base_stmt_count)
return false;
for (size_t i = 0; i < base_stmts.size(); ++i) {
if (base_stmts[i] != stmts[i])
return false;
}
return true;
}
unsigned int pass_skim::execute(function *fun) {
if (!dump_file || !fun || !fun->cfg)
return 0;
struct cgraph_node *node = cgraph_node::get(fun->decl);
if (!node) return 0;
const std::string name(node->name());
if (base_function.empty() && name.find(".resolver") != std::string::npos) {
base_function = name.substr(0, name.find(".resolver"));
fprintf(dump_file, "[BASE] Found: %s\n", base_function.c_str());
return 0;
}
if (name.find(base_function) != 0)
return 0;
if (base_stmt_count == 0 && base_bb_count == 0) {
record_function_info(fun);
} else if (compare_function_info(fun)) {
fprintf(dump_file, "[PRUNE]: %s\n", name.c_str());
} else {
fprintf(dump_file, "[NO PRUNE]: %s\n", name.c_str());
}
return 0;
}
} // namespace
gimple_opt_pass *make_pass_skim(gcc::context *ctxt) {
return new pass_skim(ctxt);
}
Reflection
This project has been by far the most challenging technical task I’ve attempted so far. Despite being only a single analysis pass in GCC, it required:
• Understanding GCC internals: such as passes, GIMPLE IR, and how clone groups are handled.
• Deep debugging: dealing with missing output, investigating pass ordering, handling build system quirks, and reading dump files.
• Problem solving under uncertainty: especially when no error was thrown, but expected output didn’t appear.
From reading actual GCC source to hacking together tmpfile()-based GIMPLE string extraction, this project forced me to think more like a compiler engineer than an application developer.
One key thing I learned is: sometimes, no output is the hardest kind of bug.
You don’t know if it’s a logic error, a registration issue, or just a misplaced fprintf.
Even though I haven’t resolved the final output issue yet, I now feel far more confident navigating large, complex C++ codebases like GCC, and better equipped to reason about compiler internals.
Comments
Post a Comment
